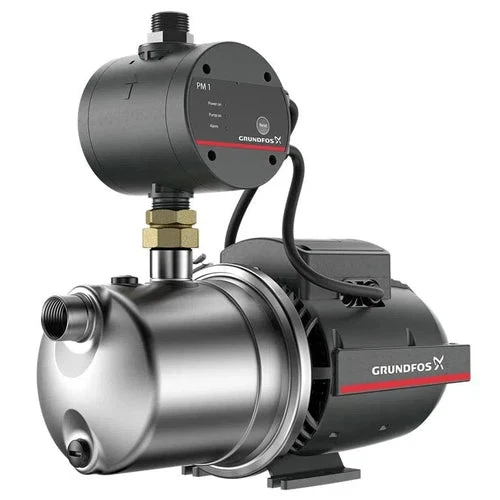

Pressure Pump Jet Self Priming JP 3-42 PM1 Grundfos
JP PM is a booster that consists of a pressure manager and a self-priming, single-stage centrifugal pump. JP PM is designed for various garden and domestic applications and has dry-running protection.
Technical
Rated flow
3 m³/h
Rated head
17.91 m
Code for shaft seal
BBVP
Approvals
CE,EAC
Curve tolerance
ISO9906:2012 3B
Pump version
A
Model
A
Adjustable start pressure (Yes/No)
N
Start pressure
1.5 bar
Materials
Pump housing
Stainless steel
EN 1.4301
AISI 304
Impeller
Composite
PPO-20GF
Material code
A
Installation
Range of ambient temperature
0 .. 40 °C
Maximum operating pressure
PN 6 bar
Pipe connection standard
ISO 228-1
Type of inlet connection
G(F)
Type of outlet connection
G(F)
Size of inlet connection
1 inch
Size of outlet connection
1 inch
Pressure rating for connection
PN 6
Liquid
Pumped liquid
Water
Liquid temperature range
0 .. 40 °C
Selected liquid temperature
20 °C
Density
998.2 kg/m³
Electrical data
Power input P1
700 W
Rated power - P2
0.55 kW
Mains frequency
50 Hz
Rated voltage
1 x 220-240 V
Rated current
3.2 A
Starting current
13.2 A
Rated speed
2850 rpm
Capacitor size - run
14 µF/450 V
Enclosure class (IEC 34-5)
IP44
Insulation class (IEC 85)
F
Length of cable
1.5 m
Power plug
SCHUKO
Controls
Type of connector
Type E/F (CEE7/7)
Others
Net weight
9 kg
Gross weight
14 kg
Environmental approvals
WEEE
